| • Six standard sizes | • Safety Thermostat | ||||||||||||||||||||||||
| • Full two year warranty | • Ovens conform to BS2648 & BS3421 | ||||||||||||||||||||||||
| • Polished stainless steel
chamber (Round corners on MAX units) |
• Adjustable outlet vent to aid air
drying (ME 100mm dia) | ||||||||||||||||||||||||
| • Mechanical convection | • Standard toughend glass inner door on MAXI | ||||||||||||||||||||||||
| • Powder coated exterior | • Choice of temperature control sysytem | ||||||||||||||||||||||||
• Temperature range:
|
• Standard control system:
|

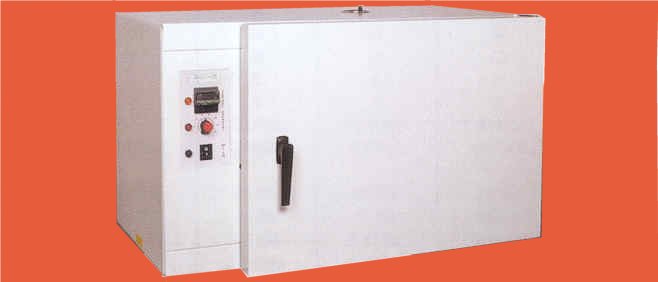

The exterior is mild sheet steel finished in a light grey powder coated paint. The interior is constructed from stainless steel.
MAXO and MAXI units have polished stainless steel liners with easy clean rounded corners. All models have a side mounted fan. The control unit is also mounted to the side of the door.
ME units have a 100mm diameter outlet
vent at the top of the oven to assist the drying process.
Maxi ovens have an internal toughend glass door.
Heating
Heating is provided by sheathed Incoloy elements positioned in the side mounted fan duct.
Controls
ME and MOBS units have hydraulic thermostatic control with a calibrated scale.
MAXO and MAXI units have electronic control with a calibrated scale. Optional digital controls with a microprocessor and LED temperature display are available on these models.
All types are fitted with an adjustable over-temperature safety thermostat.
Standard supply requirement is 220/240V 50Hz.
Product Information SIZES (dimensions in mms.)| Model | Internal | External |
|---|---|---|
| Height x Width x Depth | Height x Width x Depth | |
| 53 | 330 x 490 x 330 | 520 x 850 x 510 |
| 75 | 330 x 490 x 460 | 520 x 850 x 640 |
| 95 | 450 x 490 x 430 | 620 x 870 x 630 |
| 130 | 610 x 490 x 430 | 780 x 870 x 630 |
| 160 | 610 x 490 x 540 | 780 x 870 x 740 |
| 190 | 710 x 490 x 540 | 880 X 870 x 740 |
| Model | 53 | 75 | 95 | 130 | 160 | 190 |
|---|---|---|---|---|---|---|
| | ||||||
| Weight | 38 | 44 | 52 | 60 | 68 | 75 |
| Capacity | 53 | 75 | 95 | 130 | 160 | 190 |
| Shelf positions | 3 | 3 | 3 | 4 | 4 | 6 |
| Shelves | 2 | 2 | 2 | 3 | 3 | 4 |
| Oven Watts Low / High | 500/850 | 500/1000 | 500/1250 | 750/1500 | 750/1750 | 1000/2000 |
| Incubator Watts Low / High | 250/500 | 250/500 | 250/600 | 350/700 | 350/850 | 500/1000 |
| | ||||||
| Order code: | ||||||
| ME 250 HYD: | ME 53 | ME 75 | ME95 | ME130 | ME 160 | ME 190 |
| MOBS 300 HYD | BS 53 | BS 75 | BS 95 | BS130 | BS 160 | BS 190 |
| MAXO 300 ELECTRONIC | MF 53 E | MF 75 E | MF 95 E | MF 130 E | MF 160 E | MF 190 E |
| MAXO 300 DIGITAL | MF 53 D | MF 75 D | MF 95 D | MF 130 | MF 160 D | MF 190 D |
| MAXI ELECTRONIC 100 | MX 53 E | MX 75 E | MX 95 E | MX 130 E | MX 160 E | MX 190 E |
| MAXI DIGITAL 100 | MX 53 D | MX 75 D | MX 95 D | MX 130 D | MX 160 D | MX 190 D |
| Model | 53 | 75 | 95 | 130 | 160 | 190 |
|---|---|---|---|---|---|---|
| | ||||||
| Heat up to 100°C | 15 | 15 | 20 | 20 | 25 | 25 |
| Recovery time | 4 | 4 | 4 | 4 | 5 | 6 |
| Variation (°C) | 1.5 | 1.5 | 2.0 | 2.0 | 2.0 | 2.0 |
| | ||||||
| Heat up to 200°C | 34 | 35 | 38 | 40 | 47 | 45 |
| Recovery time | 7 | 8 | 8 | 8 | 8 | 10 |
| Variation (°C) | 2.5 | 2.4 | 3.0 | 3.0 | 3.0 | 3.5 |
| | ||||||
| Heat up to 300°C | 65 | 65 | 65 | 66 | 68 | 70 |
| Recovery time | 18 | 18 | 22 | 23 | 25 | 27 |
| Variation (°C) | 5.0 | 5.5 | 6.5 | 7.0 | 7.0 | 7.0 |
| | ||||||
| MAXI 130 Heating to: | 38 | 60 | 80 | 100 | ||
| Heat up time | 12 | 13 | 15 | 23 | ||
| Recovery time | 3 | 4 | 4 | 5 | ||
| Variation (± °C) | 0.25 | 0.75 | 1.00 | 1.25 | ||
| Fluctuation (± °C) | 0.1 | 0.1 | 0.1 | 0.1 | ||
| Designation | Description |
| D | Digital temperature controller (PID dual digital display) |
| DP | Digital temperature programmer (8 adjustable segments) |
| DOT | Digital Over-temperature protection controller |
| TSA7 | Time switch, 7 day analogue |
| TSA24 | Time switch, 24 hour analogue |
| TSD7 | Time switch, 7 day digital |
| TSD24 | Time switch, 24 hour digital |
| OS1 | Oven stand frame (models up to /75) |
| OS2 | Oven stand frame (models /100 to /190) |
All the above units are guaranteed for two years from the date of despatch from the manufacturing works except for wear and tear or mis-use.
All the above units are C.E. compliant
| BURNTSTONE CERAMIC LIMITED 19 Redgates, Walkington, Beverley HU17 8TS
