New Furnace summary

Burntstone
CERAMIC LIMITED

Technical Data August 2006

Summary of new furnaces

A range of front and top loading muffle and chamber furnaces for laboratory and workshop or studio use are described here. Three types of top loading furnaces are listed. There are those designed for use with crucibles for metal or glass melting, simple vertical rectangular shaft furnaces for general use and large flat furnaces for annealing, fusing and bending glass sheets.
Bogie hearth kilns are also shown.
Units of other sizes, types and operating temperatures can be built to order. All the furnaces are electrically heated.

Laboratory sizes

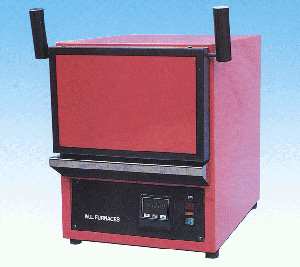

Front loading furnaces

Product Max Temp°C Internal Dimensions (mm) Volume Power requirement Weight Comments

Width Height Depth Litres kW Volts kgs

Medium Temperature range

M 1 1200 75 75 150 1.0 1.15 240 32 Muffle

M 2 1200 125 100 150 1.9 1.55 240 34 Muffle

M 3 1200 175 120 175 3.7 2.0 240 45 Muffle

M 4 1200 150 90 235 3.2 2.0 240 45 Muffle

M 5 1200 175 120 355 7.5 3.0 240 58 Muffle

M 6 1200 190 140 560 14.9 5.75 240 85 Muffle

M 7 1200 225 200 455 20.5 6.0 240 95 Muffle
or slab

M 8 1200 305 200 455 27.8 7.0 240 109 Muffle
or slab

M 9 1200 305 305 455 42 7.0 240 155 Slab

Note: 1 Muffles are wire wound tubes closed one end with door at other end.

2 Slab furnaces have the wire heating elements embedded in the furnace walls.

High Temperature range

HT 1 1400 125 90 175 2.0 2.2 240 37 Chamber

HT 2 1400 150 100 305 4.6 5.0 240 45 Chamber

HT 3 1400 175 150 355 9.3 7.0 240 73 Chamber

VH 1 1500 125 90 175 2.0 3.6 240 57 Chamber

VH 2 1500 150 100 305 4.6 5.0 240 70 Chamber

VH 3 1500 175 150 355 9.3 7.0 240/415 80 Chamber

CL 1 1600 150 100 250 3.8 4.5 240 90 Chamber

CL 2 1600 175 150 355 9.3 7.0 240/415 140 Chamber

Note: 1 Chamber furnaces have the heating elements exposed to the articles being heated.

2 In this range of furnaces the heating elements are silicon carbide.

Very High Temperature range

RH 1 1700 135 140 150 2.8 2.2 240 200 Chamber

RH 2 1700 150 150 200 6.0 4.0 240 250 Chamber

RH 3 1700 200 200 300 12 6.0 240/415 295 Chamber

RH 4 1700 300 300 400 36 12.0 415 360 Chamber

FH 5 1800 160 165 270 7.1 8.0 415 260 Chamber

Note: In this range of furnaces the heating elements are molybdenum disilicide.

Small top loading furnace

TLW 12 1200 230 230 B/F 300 16 3 240 Suitable for crucibles
to A12 size

Product	Max Temp°C	Internal Dimensions (mm)	Volume	Power requirement	Weight	Comments
		Width	Height	Depth	Litres	kW	Volts	kgs
Medium Temperature range
M 1	1200	75	75	150	1.0	1.15	240	32	Muffle
M 2	1200	125	100	150	1.9	1.55	240	34	Muffle
M 3	1200	175	120	175	3.7	2.0	240	45	Muffle
M 4	1200	150	90	235	3.2	2.0	240	45	Muffle
M 5	1200	175	120	355	7.5	3.0	240	58	Muffle
M 6	1200	190	140	560	14.9	5.75	240	85	Muffle
M 7	1200	225	200	455	20.5	6.0	240	95	Muffle or slab
M 8	1200	305	200	455	27.8	7.0	240	109	Muffle or slab
M 9	1200	305	305	455	42	7.0	240	155	Slab
Note:	1	Muffles are wire wound tubes closed one end with door at other end.
	2	Slab furnaces have the wire heating elements embedded in the furnace walls.
High Temperature range
HT 1	1400	125	90	175	2.0	2.2	240	37	Chamber
HT 2	1400	150	100	305	4.6	5.0	240	45	Chamber
HT 3	1400	175	150	355	9.3	7.0	240	73	Chamber
VH 1	1500	125	90	175	2.0	3.6	240	57	Chamber
VH 2	1500	150	100	305	4.6	5.0	240	70	Chamber
VH 3	1500	175	150	355	9.3	7.0	240/415	80	Chamber
CL 1	1600	150	100	250	3.8	4.5	240	90	Chamber
CL 2	1600	175	150	355	9.3	7.0	240/415	140	Chamber
Note:	1	Chamber furnaces have the heating elements exposed to the articles being heated.
	2	In this range of furnaces the heating elements are silicon carbide.
Very High Temperature range
RH 1	1700	135	140	150	2.8	2.2	240	200	Chamber
RH 2	1700	150	150	200	6.0	4.0	240	250	Chamber
RH 3	1700	200	200	300	12	6.0	240/415	295	Chamber
RH 4	1700	300	300	400	36	12.0	415	360	Chamber
FH 5	1800	160	165	270	7.1	8.0	415	260	Chamber

	Note:	In this range of furnaces the heating elements are molybdenum disilicide.
Small top loading furnace
TLW 12	1200	230	230 B/F	300	16	3	240	Suitable for crucibles to A12 size

Studio and workshop sizes

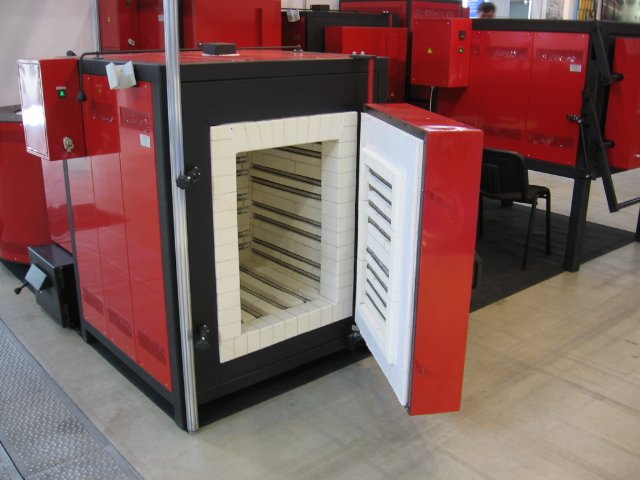

Front loading kilns with hinged door

Product Max Temp°C Internal Dimensions (mm) Volume Power requirement Weight

Width Height Depth Litres kW Volts kg

W 50 1260 400 300 400 48 4.2 220 85

WK 100 1260 400 400 500 100 9 400 200

WK 150 1260 500 600 500 150 12 400 280

WK 300 1260 600 850 600 300 18 400 420

WK 750 1260 900 900 900 730 45 400 920

WK 1500 1260 1000 1200 1300 1560 75 400 2600

Product	Max Temp°C	Internal Dimensions (mm)	Volume	Power requirement	Weight
		Width	Height	Depth	Litres	kW	Volts	kg
W 50	1260	400	300	400	48	4.2	220	85
WK 100	1260	400	400	500	100	9	400	200
WK 150	1260	500	600	500	150	12	400	280
WK 300	1260	600	850	600	300	18	400	420
WK 750	1260	900	900	900	730	45	400	920
WK 1500	1260	1000	1200	1300	1560	75	400	2600

Other sizes are available. All kilns will operate on 415V 3ph, N, E, supply. Kilns can be supplied with 900, 1260 or 1340°C maximum operating temperature.

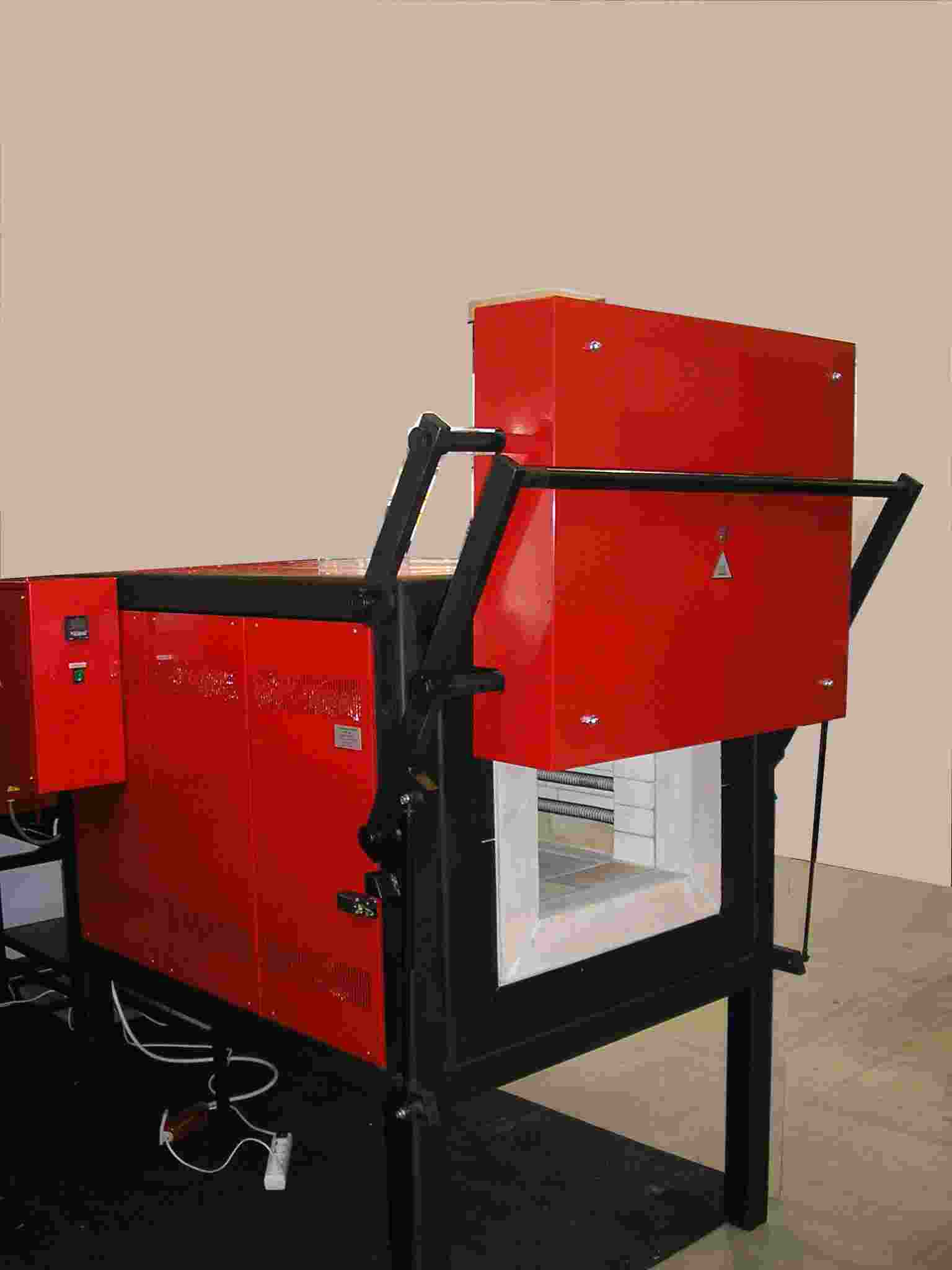

Front loading kilns with lift-up door

Product Max Temp°C Internal Dimensions (mm) Volume Power requirement Weight

Width Height Depth Litres kW Volts kg

WT 60 1260 400 300 500 60 15 400 300

WT 100 1260 500 300 700 105 22 400 400

WT 200 1260 700 300 1000 210 35 400 500

WT 360 1260 700 400 1300 364 45 400 1000

Product	Max Temp°C	Internal Dimensions (mm)	Volume	Power requirement	Weight
		Width	Height	Depth	Litres	kW	Volts	kg
WT 60	1260	400	300	500	60	15	400	300
WT 100	1260	500	300	700	105	22	400	400
WT 200	1260	700	300	1000	210	35	400	500
WT 360	1260	700	400	1300	364	45	400	1000

All kilns will operate on 415V 3ph, N, E, supply. Kilns can be supplied with 900 or 1260°C maximum operating temperature.

Top loading furnaces

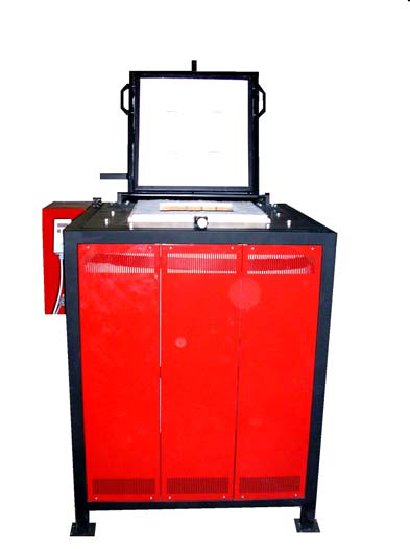

Vertical furnaces

Product Max Temp°C Internal Dimensions (mm) Volume Power requirement Weight

Width Height Breadth
front to back Litres kW Volts kg

WP 60 1260 300 650 300 60 10 400 300

WP 100 1260 400 600 400 96 21 400 500

WP 1300 1260 900 1600 900 1296 90 400 3000

Product	Max Temp°C	Internal Dimensions (mm)	Volume	Power requirement	Weight
		Width	Height	Breadth front to back	Litres	kW	Volts	kg
WP 60	1260	300	650	300	60	10	400	300
WP 100	1260	400	600	400	96	21	400	500
WP 1300	1260	900	1600	900	1296	90	400	3000

All kilns will operate on 415V 3ph, N, E supply. Kilns can be supplied with 900 or 1260°C maximum operating temperature.

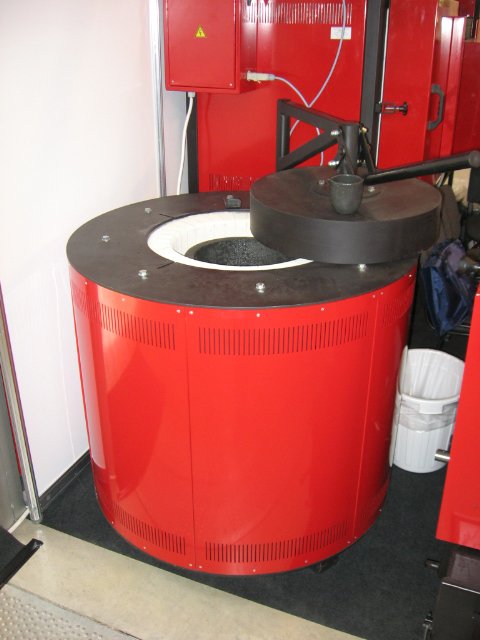

Crucible furnaces

Product Max Temp°C Internal Dimensions (mm) Volume Power requirement Weight

Diameter Height Litres kW Volts kg

WM 70 1200 500 475 10 18 400 3ph, N, E 500

WM 150 1200 600 480 20 20 400 3ph, N, E 800

WM 300 1200 770 715 40 30 400 3ph, N, E 1000

Product	Max Temp°C	Internal Dimensions (mm)	Volume	Power requirement	Weight
		Diameter	Height	Litres	kW	Volts	kg
WM 70	1200	500	475	10	18	400 3ph, N, E	500
WM 150	1200	600	480	20	20	400 3ph, N, E	800
WM 300	1200	770	715	40	30	400 3ph, N, E	1000

All kilns will operate on 415V 3ph N, E, supply. They may fixed or tilting type - specify when requesting quotation.

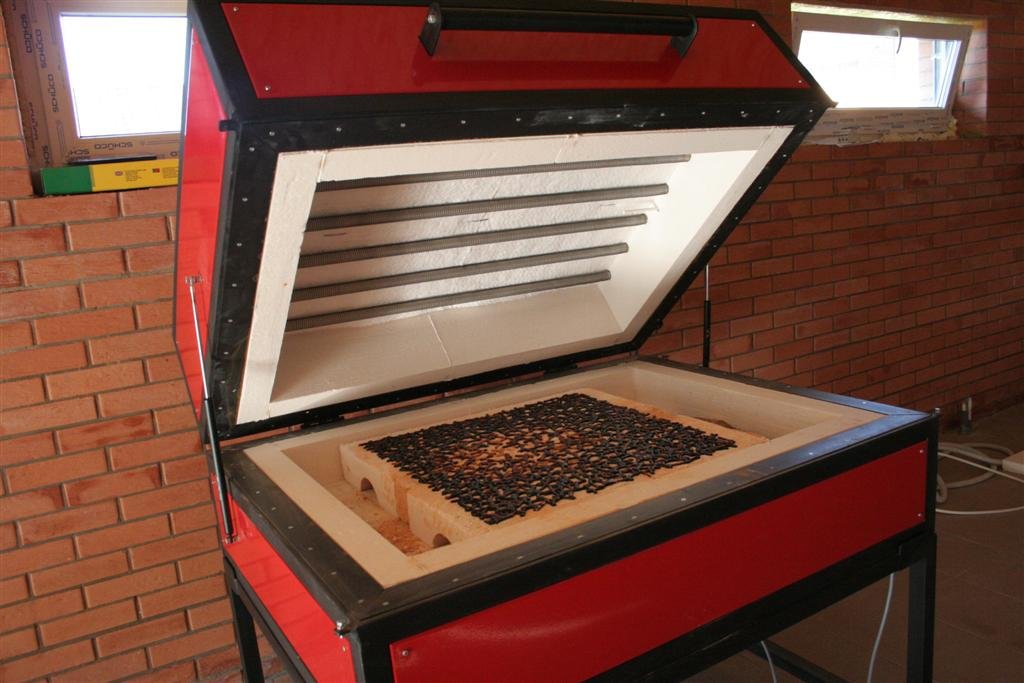

Glass treatment furnaces

Product Max Temp°C Internal Dimensions (mm) Volume Power requirement Weight

Width Height Breadth
front to back Litres kW Volts kg

WG 60 1000 500 250 500 60 4.5 400 3ph, N 250

WG 130 1000 500 270 1000 130 9 400 3ph, N 400

WG 320 1000 800 270 1500 320 15 400 3ph, N 700

Product	Max Temp°C	Internal Dimensions (mm)	Volume	Power requirement	Weight
		Width	Height	Breadth front to back	Litres	kW	Volts	kg
WG 60	1000	500	250	500	60	4.5	400 3ph, N	250
WG 130	1000	500	270	1000	130	9	400 3ph, N	400
WG 320	1000	800	270	1500	320	15	400 3ph, N	700

All kilns will operate on 415V 3ph supply.

Bogie hearth kilns
for heat treatment of metals and ceramics

Product Max Temp°C Internal Dimensions (mm) Volume Power requirement Weight

Width Height Depth Litres kW Volts kg

WKB 800 1260 740 1200 1000 800 60 400 3ph, N 2500

WKB 1000 1260 760 900 1450 1000 75 400 3ph, N 3000

WKB 2000 1260 960 980 2200 2000 110 400 3ph, N 5000

WKB 4000 900 900 1100 4100 4000 150 400 3ph, N 7000

Product	Max Temp°C	Internal Dimensions (mm)	Volume	Power requirement	Weight
		Width	Height	Depth	Litres	kW	Volts	kg
WKB 800	1260	740	1200	1000	800	60	400 3ph, N	2500
WKB 1000	1260	760	900	1450	1000	75	400 3ph, N	3000
WKB 2000	1260	960	980	2200	2000	110	400 3ph, N	5000
WKB 4000	900	900	1100	4100	4000	150	400 3ph, N	7000

All kilns will operate on 415V 3ph, N, E, supply. Kilns can be supplied with 900, 1260 or 1280°C maximum operating temperature.

This sheet summarises the properties of the products. The links take you to the full data sheet for that item.

The information and data herein are offered solely for your consideration and guidance and are not to be construed as a warranty or specification. Nothing contained herein is to be interpreted as authorisation to practice a patented invention without a licence.

All sales are subject to supplier's Conditions of Sale.
