Eleven standard sizes | Three controller options |
Fan circulation over 30 litre | Safety overheat thermostat |
Design
The exterior is constructed from sheet steel finished in an epoxy easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.
Fixed shelf runners and removable chrome plated wire grid shelves are fitted.

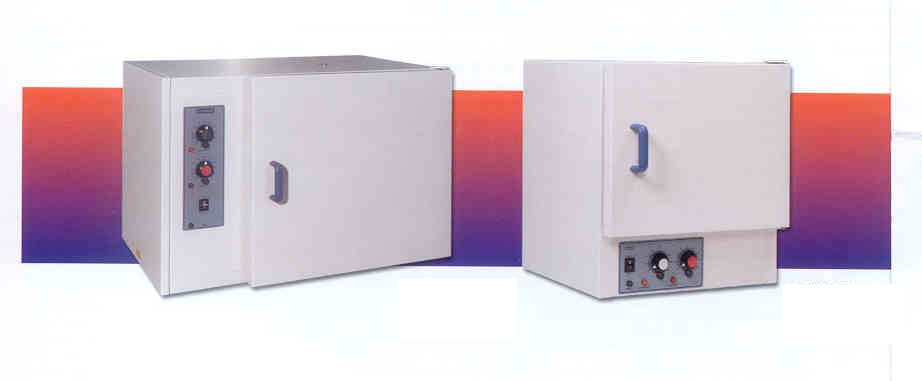

The vertical style units are fitted with single doors, the horizontal style have twin doors. The top vent is fitted with a clip to hold a mercury-in-glass thermometer.
The vertical style units are fitted with controls below the door and the horizontal style units (from 75 litre size) are available with the controls on the side.
Heating
Heating is provided by sheathed Incoloy elements positioned below the chamber floor for natural convection units and around the fan on the back or side wall of the chamber for mechanical convection units.
Controls
The control system comprises a direct reading thermostat and overheat thermostat. Both have calibrated scales and tamper-proof locks. They also have mains switch and indicator light and heat and overheat indicators.
Options include a microprocessor digital controller as standard with LED display of temperature or an independent LED display showing temperature on the thermostatically controlled units. All units supplied with digital controller must have fan circulation.
STANDARD SIZES
Model | Capacity litres |
Chamber Internal | Dimensions External No fan | HxWxD mms with fan | kW | No. of shelves | No. of shelf positions | Nett wt kg |
---|---|---|---|---|---|---|---|---|
MINO/6 | 6 | 150 x 230 x 180 | 390 x 320 x 320 | n/a | 0.35 | 1 | 1 | 7 |
MINO/18 | 18 | 260 x 260 x 270 | 500 x 360 X 400 | n/a | 0.50 | 2 | 2 | 14 |
MINO/30 | 30 | 240 x 360 x 350 | 490 x 450 x 470 | 490 x 450 x 590 | 0.75 | 2 | 2 | 20 |
MINO/40 | 40 | 320 x 360 x 350 | 570 x 450 x 470 | 570 x 450 x 590 | 0.75 | 2 | 3 | 23 |
MINO/50 | 50 | 330 x 490 x 330 | 580 x 610 x 450 | 580 x 610 x 570 | 0.75 | 2 | 3 | 26 |
MINO/75 | 75 | 330 x 490 x 460 | 580 x 610 x 580 | 580 x 610 x 700 | 1.00 | 2 | 3 | 34 |
MINO/100 | 100 | 450 x 490 x 460 | 700 X 610 x 580 | 700 x 610 x 700 | 1.25 | 3 | 4 | 44 |
MINO/125 | 125 | 550 x 490 x 460 | 800 x 610 x 580 | 800 x 610 x 700 | 1.25 | 3 | 5 | 52 |
MINO/150 | 150 | 550 x 490 x 540 | 800 x 610 x 660 | 800 x 610 x 780 | 1.50 | 3 | 5 | 60 |
MINO/200 | 200 | 750 x 490 x 540 | 1000 x 610 x 660 | 1000 x 610 x 780 | 2.00 | 4 | 7 | 76 |
HORIZONTAL STYLE | ||||||||
OV/75 | 75 | 420 x 530 x 350 | 450 x 490 x 350 | 550 x 850 x 460 | 1.00 | 2 | 3 | 39 |
OV/100 | 100 | 420 x 530 x 460 | 450 x 490 x 460 | 550 x 850 x 570 | 1.25 | 3 | 4 | 48 |
OV/125 | 125 | 520 x 530 x 460 | 550 x 490 x 460 | 650 x 850 x 570 | 1.25 | 3 | 5 | 57 |
OV/150 | 150 | 520 x 530 x 540 | 550 x 490 x 540 | 650 x 850 x 650 | 1.50 | 3 | 5 | 66 |
OV/200 | 200 | 720 x 530 x 540 | 750 x 490 x 540 | 850 x 850 x 650 | 2.00 | 4 | 7 | 85 |
Designation | Description | |
F | Fan (Not available on MINO/6 or MINO/18, standard on Mino/200 & OV/200.) | |
D | Digital temperature controller (PID dual digital display) | |
DP | Digital temperature programmer (8 adjustable segments) | |
DOT | Digital Over-temperature protection controller | |
TSA7 | Time switch, 7 day analogue | |
TSA24 | Time switch, 24 hour analogue | |
TSD7 | Time switch, 7 day digital | |
TSD24 | Time switch, 24 hour digital | |
OS1 | Oven stand frame (models up to /75) | |
OS2 | Oven stand frame (models /100 to /200) |
All the above units are guaranteed for two years from the date of despatch from the manufacturing works except for wear and tear or mis-use.
All the above units are C.E. compliant
