January 2004

Drying ovens
Large sizes from 250 to 1250 litres

•     Nine standard sizes	•     Digital controller over 650 litre
•     Fan circulation	•     300°C option in Vertical styles

All units up to 500 litres have CLAD interior with thermostatic control as standard. All units from 650 litres upwards have CLAD interior with microprocessor digital control as standard. Normal operating temperature range is 40 to 250°C.

GENERAL DESCRIPTION:

Design

The exterior is constructed from sheet steel finished in an epoxy easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.

Fixed shelf runners and removable chrome plated wire grid shelves are fitted.

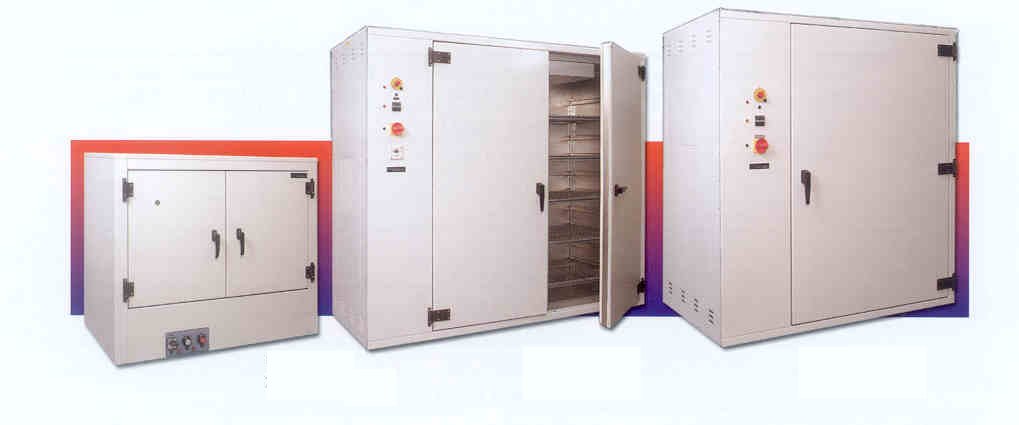

The vertical style units are fitted with single doors, the horizontal style have twin doors.

Heating

Heated by Incoloy sheathed elements positioned in the base fan duct for units up to 500 litres and in the side fan duct on units over 650 litres.

Controls

Ovens up to 500 litres are fitted with a control system comprising of a direct reading thermostat and overheat thermostat, both with calibrated scales and tamper proof locks, all of which are fitted at The base of the unit. They also include mains switch with indicator and heat and overheat indicators.

Ovens from 650 litres have as standard a microprocessor digital controller with LED display of temperature and are fitted on the side of the unit.

An independent LED display for showing temperature or a microprocessor digital control are available as an option on thermostatically controlled units.

STANDARD SIZES

Model	Capacity	Chamber Dimensions in cms (HxWxD)		No. of	No. of	Nett wt (kg)
	litres	Internal	External	shelves	shelf positions
LCO/9V	250	91 x 51 x 52	127 x 69 x 69	5	7	85
LCO/12V	350	91 x 61 x 62	127 x 79 x 79	5	7	110
LCO/15V	425	91 x 61 x 77	127 x 79 x 94	5	7	140
LCO/18V	500	114 x 61 x 77	150 x 79 x 94	5	9	155
LCO/22V/DIG	650	114 x 77 x 77	150 x 142 x 95	5	9	170
LCO/27V/DIG	750	128 x 77 x 77	164 x 142 x 95	5	10	190
LCO/30V/DIG	850	142 x 77 x 77	178 x 142 x 95	5	11	210
LCO/35V/DIG	1000	142 x 77 x 92	178 x 142 x 110	5	11	230
Horizontal style
LCO/9H	250	54 x 92 x 44	94 x 109 x57	3	4	80
LCO/12H	350	54 x 92 x 64	94 x 109 x77	3	4	120
LCO/15H	425	76 x 92 x 64	112 x 109 x77	4	5	150
LCO/18H	500	91 x 92 x 64	127 x 109 x77	5	7	165
LCO/22H/DIG	650	91 x 92 x 77	127 x 157 x 95		7	180
LCO/27H/DIG	750	106 x 92 x 77	142 x 157 x 95	5	8	200
LCO/30H/DIG	850	122 x 92 x 77	158 x 157 x 95	5	9	220
LCO/35H/DIG	1000	142 x 92 x 77	178 x 157 x 95	5	11	240
LCO/42H/DIG	1250	142 x 122 x 74	178 x 187 x 92	5	11	275

All the above units are guaranteed for two years from the date of despatch from the manufacturing works except for wear and tear or mis-use.

All the above units are C.E. compliant
